Forward Curved Polypropylene Fans

CES MODEL / FORWARD CURVED POLYPROPYLENE FAN

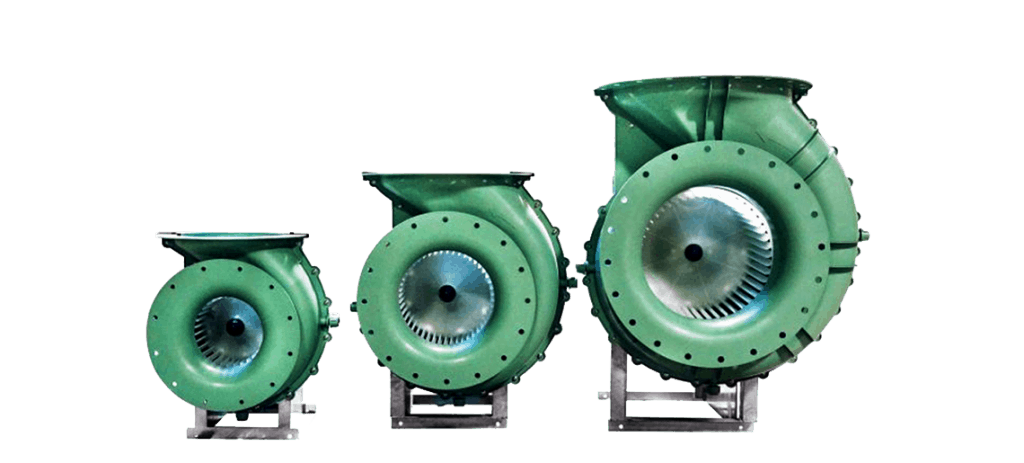

three green forward curved plastic fans

CES model fans from Texel-Seikow U.S.A., Inc. are ideal for when you need moderate capacities at low to medium pressures. Our forward curved plastic fans are made from polypropylene, which is resistant to most chemicals found in laboratories, such as mineral acids, saline solutions, ammonia solutions, and more. This makes forward curved polypropylene fans ideal for laboratory fan & industrial applications.

Details:

Capacity to 5,000 CFM
Static pressure to 4.0 “wc
Suction / Discharge size 10”, 12”, 16”
Gas temperature to 122°F Arrangement 4,9 / Direct drive, Belt drive


Features:

Center positioned outlet provides easy duct installation
Removable suction flange for easy maintenance and replacement of the impeller


Material:

Casing: Fiberglass Reinforced Polypropylene
Impeller: Fiberglass Reinforced Polypropylene
Shaft: Carbon steel / SS304 or SS316 options are available.
Base: Galvanized steel
Belt cover/Shaft cover: FRP Grease lubricated bearing
industrial green polypropylene fan

Choose our forward curved polypropylene fans for your industrial application. If you have any questions about our plastic blowers, reach out to us at 1-713-683-1505 or contact us today! We look forward to providing you with pollution control and ventilation solutions.
