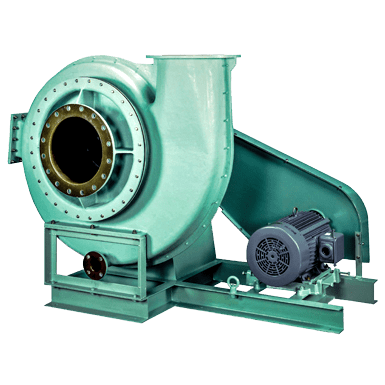

High Pressure Air Blower
FTB 202-701 / FRP Fan 50 – 20,000 CFM / 8-50″WC
TEXEL is a top-tier high pressure FRP blower manufacturer. This FTB high pressure air blower is ideal for cooling, ventilating, and handling dust, materials, or corrosive fumes from exhaust systems.
Details:
Capacity to 20,000 CFMStatic pressure to 50”
Impeller sizes 12”, 15”, 18”, 19”, 21”, 22”, 25”
Gas temperature to 176°F (226°F available with alternate resin)
Arrangement 1, 8
High pressure centrifugal blower
Features:
High efficiency backward curved impeller made of vinyl ester resinOil Lubricated bearings for easy maintenance and longevity of bearing life.
The bearings are selected minimum average bearing life (AFBMA L-10) in excess of 30,000 hours at the maximum fan RPM.
Material:
Casing:
– FTB 202-252: Vinyl ester resin
– FTB 301-701: Poly ester resin
Impeller: Vinyl ester resin
Shaft: Carbon steel / SS304 or SS316 options are available.
Base: Epoxy coated carbon steel
Belt cover/Shaft cover: FRP
Oil lubricated bearings
Air seal, Water seal, Mechanical seal etc. options are available.
ASTM D4167 construction is available as an option
As a high pressure FRP blower manufacturer, TEXEL can provide you with a variety of environmental air movement equipment solutions. Our wide range of exhaust system fans are sure to meet the demands of your application.
To learn more, contact us today!
