Backward Curved
Centrifugal Fans
FTF 153-1403 / FRP Fan 100 – 130,000 CFM /1-18″WC

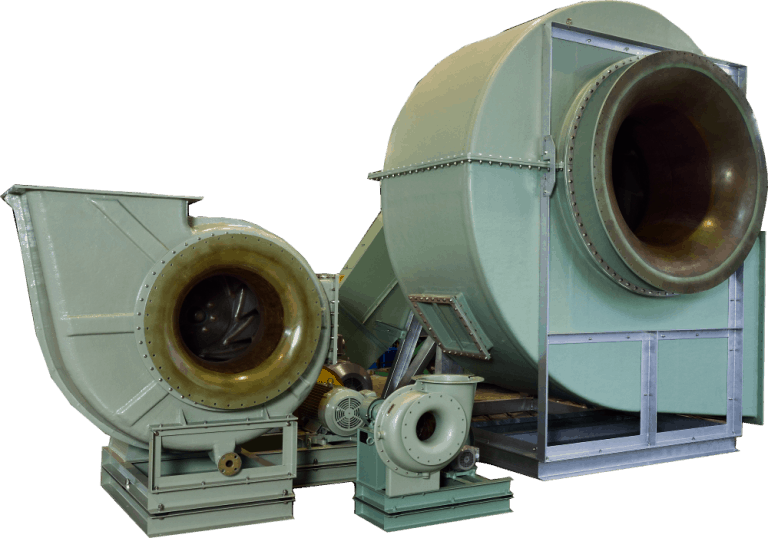

Our backward curved centrifugal fans are ideal for a wide range of industrial applications that require high pressure, such as combustion air, solvent recovery, thermal oxidation, corrosive air movement, scrubbers, and air circulation. These FRP backward curved centrifugal fans are also corrosion resistant, making them perfect for every application.
To learn more about our centrifugal fan options, contact us today!
Details:
Capacity to 130,000 CFMStatic pressure up to 18.0” WC
Impeller sizes 10”, 12”, 16”, 20”, 24”, 30”, 38”, 44”, 50”, 55”, 72”
Gas temperature to 176°F (226°F Available with special resin)
Arrangement 1, 4, 8, 9, 10
Features:

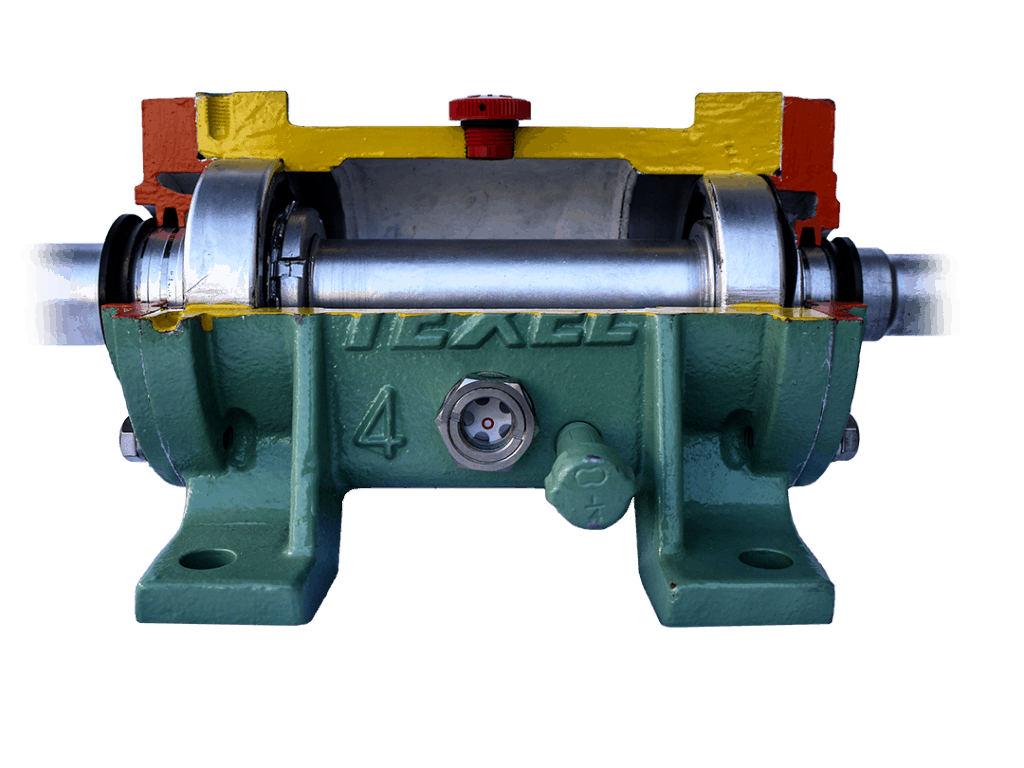

High efficiency backward curved impeller made of vinyl ester resinOil Lubricated bearings for easy maintenance and longevity of bearing life.
The bearings are selected minimum average bearing life (AFBMA L-10) in excess of 30,000 hours at the maximum fan RPM. AMCA Certified for Air, Sound, and FEG
Material:
Casing: Vinyl ester resinImpeller: Vinyl ester resin
Shaft: Carbon steel / SS304 or SS316 options are available.
Base: Epoxy coated carbon steel
Belt cover/Shaft cover: FRP
Oil lubricated bearings
ASTM D4167 construction is available as an option
We can supply you with all your environmental equipment solutions. From pollution control to ventilation services, our fiberglass blowers provide you with industrial equipment solutions. Reach out to us today at 1-713-683-1505 to learn more about our FRP backward curved centrifugal fans.
